Recipes

The following pages offer you some widely-used PhpSpreadsheet recipes. Please note that these do NOT offer complete documentation on specific PhpSpreadsheet API functions, but just a bump to get you started. If you need specific API functions, please refer to the API documentation.

For example, setting a worksheet's page orientation and size covers setting a page orientation to A4. Other paper formats, like US Letter, are not covered in this document, but in the PhpSpreadsheet API documentation.

My apologies if this documentation seems very basic to some of you; but I spend so much time having to provide help lessons in PHP 101 and Excel 101 that I feel I need to provide this level of very simple detail.

Setting a spreadsheet's metadata

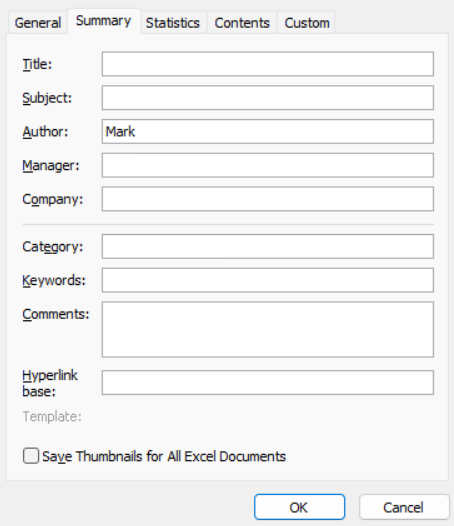

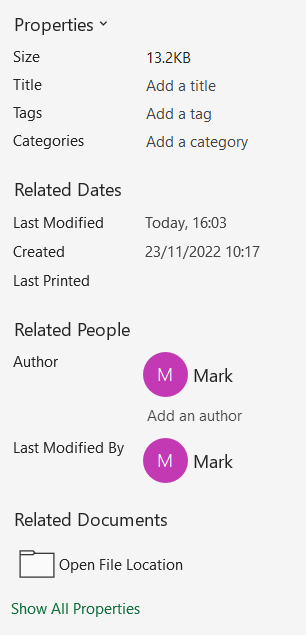

PhpSpreadsheet allows an easy way to set a spreadsheet's metadata, using document property accessors. Spreadsheet metadata can be useful for finding a specific document in a file repository or a document management system. For example Microsoft Sharepoint uses document metadata to search for a specific document in its document lists.

Setting spreadsheet metadata in PhpSpreadsheet is done as follows:

$spreadsheet->getProperties()
    ->setCreator("Maarten Balliauw")
    ->setLastModifiedBy("Mark Baker")
    ->setTitle("Office 2007 XLSX Test Document")
    ->setSubject("Office 2007 XLSX Test Document")
    ->setDescription(
        "Test document for Office 2007 XLSX, generated using PHP classes."
    )
    ->setKeywords("office 2007 openxml php")
    ->setCategory("Test result file");

You can choose which properties to set or ignore.

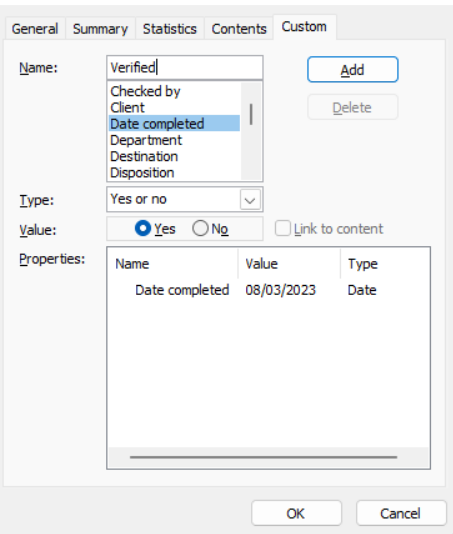

$spreadsheet->getProperties()
    ->setCustomProperty('Editor', 'Mark Baker')
    ->setCustomProperty('Version', 1.17)
    ->setCustomProperty('Tested', true)
    ->setCustomProperty('Test Date', '2021-03-17', Properties::PROPERTY_TYPE_DATE);

Warning: If the datatype for a date is not explicitly used, then it will be treated as a string.

Note: Although MS Excel doesn't recognise 2022-12-31 as valid date format when entering Custom Date Properties, PhpSpreadsheet will accept it.

Setting a spreadsheet's active sheet

A Spreadsheet consists of (very rarely) none, one or more Worksheets. If you have 1 or more Worksheets, then one (and only one) of those Worksheets can be "Active" (viewed or updated) at a time, but there will always be an "Active" Worksheet (unless you explicitly delete all of the Worksheets in the Spreadsheet).

$spreadsheet = new Spreadsheet();
$activeWorksheet = $spreadsheet->getActiveSheet();

$activeWorksheet = $spreadsheet->createSheet();

To switch between Worksheets in MS Excel, you click on the Tab for the Worksheet that you want to be "Active" in the Worksheet Tab Bar. Excel will then set that as the "Active" Worksheet.

In PhpSpreadsheet, you do this by calling the Spreadsheet's setActiveSheetIndex() methods. Either:

$activeWorksheet = $spreadsheet->setActiveSheetIndexByName('Sheet1')

using the name/title of the Worksheet that you want as the "Active" Worksheet.

Or:

$activeWorksheet = $spreadsheet->setActiveSheetIndex(0);

Where you set the "Active" Worksheet by its position in the Worksheet Tab Bar, with 0 as the first Worksheet, 1 as the second, etc.

And you can then write values to Cells in $activeWorksheet (Sheet1) again.

You don't have to assign the return value from calls to createSheet() and setActiveSheetIndex() to a variable, but it means that you can call Worksheet methods directly against $activeWorksheet, rather than having to call $spreadsheet->getActiveSheet() all the time. And, unlike MS Excel where you can only update Cells in the "Active" Worksheet; PhpSpreadsheet allows you to update Cells in any Worksheet:

// Create a Spreadsheet, with Worksheet Sheet1, which is the Active Worksheet
$spreadsheet = new Spreadsheet();
// Assign the Active Worksheet (Sheet1) to $worksheet1
$worksheet1 = $spreadsheet->getActiveSheet();
// Create a new Worksheet (Sheet2) and make that the Active Worksheet
$worksheet2 = $spreadsheet->createSheet();

$worksheet1->setCellValue('A1', 'I am a cell on Sheet1');
$worksheet2->setCellValue('A1', 'I am a cell on Sheet2');

Write a date or time into a cell

In Excel, dates and Times are stored as numeric values counting the number of days elapsed since 1900-01-01. For example, the date '2008-12-31' is represented as 39813. You can verify this in Microsoft Office Excel by entering that date in a cell and afterwards changing the number format to 'General' so the true numeric value is revealed. Likewise, '3:15 AM' is represented as 0.135417.

PhpSpreadsheet works with UST (Universal Standard Time) date and Time values, but does no internal conversions; so it is up to the developer to ensure that values passed to the date/time conversion functions are UST.

Writing a date value in a cell consists of 2 lines of code. Select the method that suits you the best. Here are some examples:

// MySQL-like timestamp '2008-12-31' or date string
\PhpOffice\PhpSpreadsheet\Cell\Cell::setValueBinder( new \PhpOffice\PhpSpreadsheet\Cell\AdvancedValueBinder() );

$spreadsheet->getActiveSheet()
    ->setCellValue('D1', '2008-12-31');

$spreadsheet->getActiveSheet()->getStyle('D1')
    ->getNumberFormat()
    ->setFormatCode(\PhpOffice\PhpSpreadsheet\Style\NumberFormat::FORMAT_DATE_YYYYMMDDSLASH);

// PHP-time (Unix time)
$time = gmmktime(0,0,0,12,31,2008); // int(1230681600)
$spreadsheet->getActiveSheet()
    ->setCellValue('D1', \PhpOffice\PhpSpreadsheet\Shared\Date::PHPToExcel($time));
$spreadsheet->getActiveSheet()->getStyle('D1')
    ->getNumberFormat()
    ->setFormatCode(\PhpOffice\PhpSpreadsheet\Style\NumberFormat::FORMAT_DATE_YYYYMMDDSLASH);

// Excel-date/time
$spreadsheet->getActiveSheet()->setCellValue('D1', 39813)
$spreadsheet->getActiveSheet()->getStyle('D1')
    ->getNumberFormat()
    ->setFormatCode(\PhpOffice\PhpSpreadsheet\Style\NumberFormat::FORMAT_DATE_YYYYMMDDSLASH);

The above methods for entering a date all yield the same result. The \PhpOffice\PhpSpreadsheet\Shared\Date::PHPToExcel() method will also work with a PHP DateTime object; or with strings containing different well-recognised date formats (although this is limited in the same ways as using the Advanced Value Binder).

Similarly, times (or date and time values) can be entered in the same fashion: just remember to use an appropriate format code.

Note: See section "Using value binders to facilitate data entry" to learn more about the AdvancedValueBinder used in the first example. Excel can also operate in a 1904-based calendar (default for workbooks saved on Mac). Normally, you do not have to worry about this when using PhpSpreadsheet.

\PhpOffice\PhpSpreadsheet\Style\NumberFormat provides a number of pre-defined date formats; but this is just a string value, and you can define your own values as long as they are a valid MS Excel format. PhpSpreadsheet also provides a number of Wizards to help you create Date, Time and DateTime format masks.

use PhpOffice\PhpSpreadsheet\Style\NumberFormat\Wizard\Date as DateWizard;
use PhpOffice\PhpSpreadsheet\Style\NumberFormat\Wizard\Time as TimeWizard;
use PhpOffice\PhpSpreadsheet\Style\NumberFormat\Wizard\DateTime as DateTimeWizard;

$spreadsheet->getActiveSheet()->setCellValue('A1', '=NOW()')
$spreadsheet->getActiveSheet()->setCellValue('A2', '=NOW()')
$spreadsheet->getActiveSheet()->setCellValue('A3', '=NOW()')

// yyyy-mm-dd
$dateFormat = new DateWizard(
    DateWizard::SEPARATOR_DASH,
    DateWizard::YEAR_FULL,
    DateWizard::MONTH_NUMBER_LONG,
    DateWizard::DAY_NUMBER_LONG
);

$spreadsheet->getActiveSheet()->getStyle('A1')
    ->getNumberFormat()
    ->setFormatCode($dateFormat);

// hh:mm
$timeFormat = new TimeWizard(
    TimeWizard::SEPARATOR_COLON,
    TimeWizard::HOURS_LONG,
    TimeWizard::MINUTES_LONG,
);

$spreadsheet->getActiveSheet()->getStyle('A2')
    ->getNumberFormat()
    ->setFormatCode($timeFormat);

// yyyy-mm-dd hh:mm
$dateTimeFormat = new DateTimeWizard(' ', $dateFormat, $timeFormat);

$spreadsheet->getActiveSheet()->getStyle('A3')
    ->getNumberFormat()
    ->setFormatCode($dateTimeFormat);

Write a formula into a cell

Inside the Excel file, formulas are always stored as they would appear in an English version of Microsoft Office Excel, and PhpSpreadsheet handles all formulae internally in this format. This means that the following rules hold:

• Decimal separator is . (period)
• Function argument separator is , (comma)
• Matrix row separator is ; (semicolon)
• English function names must be used

This is regardless of which language version of Microsoft Office Excel may have been used to create the Excel file.

When the final workbook is opened by the user, Microsoft Office Excel will take care of displaying the formula according the applications language. Translation is taken care of by the application!

The following line of code writes the formula =IF(C4>500,"profit","loss") into the cell B8. Note that the formula must start with = to make PhpSpreadsheet recognise this as a formula.

$spreadsheet->getActiveSheet()->setCellValue('B8','=IF(C4>500,"profit","loss")');

If you want to write a string beginning with an = character to a cell, then you should use the setCellValueExplicit() method.

$spreadsheet->getActiveSheet()
    ->setCellValueExplicit(
        'B8',
        '=IF(C4>500,"profit","loss")',
        \PhpOffice\PhpSpreadsheet\Cell\DataType::TYPE_STRING
    );

A cell's formula can be read again using the following line of code:

$formula = $spreadsheet->getActiveSheet()->getCell('B8')->getValue();

If you need the calculated value of a cell, use the following code. This is further explained in the calculation engine.

$value = $spreadsheet->getActiveSheet()->getCell('B8')->getCalculatedValue();

Locale Settings for Formulae

Some localisation elements have been included in PhpSpreadsheet. You can set a locale by changing the settings. To set the locale to Russian you would use:

$locale = 'ru';
$validLocale = \PhpOffice\PhpSpreadsheet\Settings::setLocale($locale);
if (!$validLocale) {
    echo 'Unable to set locale to '.$locale." - reverting to en_us<br />\n";
}

If Russian language files aren't available, the setLocale() method will return an error, and English settings will be used throughout.

Once you have set a locale, you can translate a formula from its internal English coding.

$formula = $spreadsheet->getActiveSheet()->getCell('B8')->getValue();
$translatedFormula = \PhpOffice\PhpSpreadsheet\Calculation\Calculation::getInstance()->translateFormulaToLocale($formula);

You can also create a formula using the function names and argument separators appropriate to the defined locale; then translate it to English before setting the cell value:

$formula = '=ДНЕЙ360(ДАТА(2010;2;5);ДАТА(2010;12;31);ИСТИНА)';
$internalFormula = \PhpOffice\PhpSpreadsheet\Calculation\Calculation::getInstance()->translateFormulaToEnglish($formula);
$spreadsheet->getActiveSheet()->setCellValue('B8',$internalFormula);

Currently, formula translation only translates the function names, the constants TRUE and FALSE, and the function argument separators. Cell addressing using R1C1 formatting is not supported.

At present, the following locale settings are supported:

Write a newline character "\n" in a cell (ALT+"Enter")

In Microsoft Office Excel you get a line break in a cell by hitting ALT+"Enter". When you do that, it automatically turns on "wrap text" for the cell.

Here is how to achieve this in PhpSpreadsheet:

$spreadsheet->getActiveSheet()->getCell('A1')->setValue("hello\nworld");
$spreadsheet->getActiveSheet()->getStyle('A1')->getAlignment()->setWrapText(true);

Tip

Read more about formatting cells using getStyle() elsewhere.

Tip

AdvancedValuebinder.php automatically turns on "wrap text" for the cell when it sees a newline character in a string that you are inserting in a cell. Just like Microsoft Office Excel. Try this:

\PhpOffice\PhpSpreadsheet\Cell\Cell::setValueBinder( new \PhpOffice\PhpSpreadsheet\Cell\AdvancedValueBinder() );

$spreadsheet->getActiveSheet()->getCell('A1')->setValue("hello\nworld");

Read more about AdvancedValueBinder.php elsewhere.

Explicitly set a cell's datatype

You can set a cell's datatype explicitly by using the cell's setValueExplicit method, or the setCellValueExplicit method of a worksheet. Here's an example:

$spreadsheet->getActiveSheet()->getCell('A1')
    ->setValueExplicit(
        '25',
        \PhpOffice\PhpSpreadsheet\Cell\DataType::TYPE_NUMERIC
    );

Change a cell into a clickable URL

You can make a cell a clickable URL by setting its hyperlink property:

$spreadsheet->getActiveSheet()->setCellValue('E26', 'www.phpexcel.net');
$spreadsheet->getActiveSheet()->getCell('E26')->getHyperlink()->setUrl('https://www.example.com');

If you want to make a hyperlink to another worksheet/cell, use the following code:

$spreadsheet->getActiveSheet()->setCellValue('E26', 'www.phpexcel.net');
$spreadsheet->getActiveSheet()->getCell('E26')->getHyperlink()->setUrl("sheet://'Sheetname'!A1");

Setting Printer Options for Excel files

Setting a worksheet's page orientation and size

Setting a worksheet's page orientation and size can be done using the following lines of code:

$spreadsheet->getActiveSheet()->getPageSetup()
    ->setOrientation(\PhpOffice\PhpSpreadsheet\Worksheet\PageSetup::ORIENTATION_LANDSCAPE);
$spreadsheet->getActiveSheet()->getPageSetup()
    ->setPaperSize(\PhpOffice\PhpSpreadsheet\Worksheet\PageSetup::PAPERSIZE_A4);

Note that there are additional page settings available. Please refer to the API documentation for all possible options.

The default papersize is initially PAPERSIZE_LETTER. However, this default can be changed for new sheets with the following call:

\PhpOffice\PhpSpreadsheet\Worksheet\PageSetup::setPaperSizeDefault(
    \PhpOffice\PhpSpreadsheet\Worksheet\PageSetup::PAPERSIZE_A4
);

The default orientation is ORIENTATION_DEFAULT, which will be treated as Portrait in Excel. However, this default can be changed for new sheets with the following call:

\PhpOffice\PhpSpreadsheet\Worksheet\PageSetup::setOrientationDefault(
    \PhpOffice\PhpSpreadsheet\Worksheet\PageSetup::ORIENTATION_LANDSCAPE
);

Page Setup: Scaling options

The page setup scaling options in PhpSpreadsheet relate directly to the scaling options in the "Page Setup" dialog as shown in the illustration.

Default values in PhpSpreadsheet correspond to default values in MS Office Excel as shown in illustration

Example

Here is how to fit to 1 page wide by infinite pages tall:

$spreadsheet->getActiveSheet()->getPageSetup()->setFitToWidth(1);
$spreadsheet->getActiveSheet()->getPageSetup()->setFitToHeight(0);

As you can see, it is not necessary to call setFitToPage(TRUE) since setFitToWidth(...) and setFitToHeight(...) triggers this.

If you use setFitToWidth() you should in general also specify setFitToHeight() explicitly like in the example. Be careful relying on the initial values.

Page margins

To set page margins for a worksheet, use this code:

$spreadsheet->getActiveSheet()->getPageMargins()->setTop(1);
$spreadsheet->getActiveSheet()->getPageMargins()->setRight(0.75);
$spreadsheet->getActiveSheet()->getPageMargins()->setLeft(0.75);
$spreadsheet->getActiveSheet()->getPageMargins()->setBottom(1);

Note that the margin values are specified in inches.

Center a page horizontally/vertically

To center a page horizontally/vertically, you can use the following code:

$spreadsheet->getActiveSheet()->getPageSetup()->setHorizontalCentered(true);
$spreadsheet->getActiveSheet()->getPageSetup()->setVerticalCentered(false);

Setting the print header and footer of a worksheet

Setting a worksheet's print header and footer can be done using the following lines of code:

$spreadsheet->getActiveSheet()->getHeaderFooter()
    ->setOddHeader('&C&HPlease treat this document as confidential!');
$spreadsheet->getActiveSheet()->getHeaderFooter()
    ->setOddFooter('&L&B' . $spreadsheet->getProperties()->getTitle() . '&RPage &P of &N');

Substitution and formatting codes (starting with &) can be used inside headers and footers. There is no required order in which these codes must appear.

The first occurrence of the following codes turns the formatting ON, the second occurrence turns it OFF again:

• Strikethrough
• Superscript
• Subscript

Superscript and subscript cannot both be ON at same time. Whichever comes first wins and the other is ignored, while the first is ON.

The following codes are supported by Xlsx:

Tip

The above table of codes may seem overwhelming first time you are trying to figure out how to write some header or footer. Luckily, there is an easier way. Let Microsoft Office Excel do the work for you.For example, create in Microsoft Office Excel an xlsx file where you insert the header and footer as desired using the programs own interface. Save file as test.xlsx. Now, take that file and read off the values using PhpSpreadsheet as follows:

$spreadsheet = \PhpOffice\PhpSpreadsheet\IOFactory::load('test.xlsx');
$worksheet = $spreadsheet->getActiveSheet();

var_dump($worksheet->getHeaderFooter()->getOddFooter());
var_dump($worksheet->getHeaderFooter()->getEvenFooter());
var_dump($worksheet->getHeaderFooter()->getOddHeader());
var_dump($worksheet->getHeaderFooter()->getEvenHeader());

That reveals the codes for the even/odd header and footer. Experienced users may find it easier to rename test.xlsx to test.zip, unzip it, and inspect directly the contents of the relevant xl/worksheets/sheetX.xml to find the codes for header/footer.

Tip for picture

$drawing = new \PhpOffice\PhpSpreadsheet\Worksheet\HeaderFooterDrawing();
$drawing->setName('PhpSpreadsheet logo');
$drawing->setPath('./images/PhpSpreadsheet_logo.png');
$drawing->setHeight(36);
$spreadsheet->getActiveSheet()->getHeaderFooter()->addImage($drawing, \PhpOffice\PhpSpreadsheet\Worksheet\HeaderFooter::IMAGE_HEADER_LEFT);

Setting printing breaks on a row or column

To set a print break, use the following code, which sets a row break on row 10.

$spreadsheet->getActiveSheet()->setBreak('A10', \PhpOffice\PhpSpreadsheet\Worksheet\Worksheet::BREAK_ROW);

If your print break is inside a defined print area, it may be necessary to add an extra parameter to specify the max column (and this probably won't hurt if the break is not inside a defined print area):

$spreadsheet->getActiveSheet()
    ->setBreak('A10',
        \PhpOffice\PhpSpreadsheet\Worksheet\Worksheet::BREAK_ROW,
        \PhpOffice\PhpSpreadsheet\Worksheet\Worksheet::BREAK_ROW_MAX_COLUMN);

The following line of code sets a print break on column D:

$spreadsheet->getActiveSheet()->setBreak('D10', \PhpOffice\PhpSpreadsheet\Worksheet\Worksheet::BREAK_COLUMN);

Show/hide gridlines when printing

To show/hide gridlines when printing, use the following code:

$spreadsheet->getActiveSheet()->setPrintGridlines(true);

Setting rows/columns to repeat at top/left

PhpSpreadsheet can repeat specific rows/cells at top/left of a page. The following code is an example of how to repeat row 1 to 5 on each printed page of a specific worksheet:

$spreadsheet->getActiveSheet()->getPageSetup()->setRowsToRepeatAtTopByStartAndEnd(1, 5);

Specify printing area

To specify a worksheet's printing area, use the following code:

$spreadsheet->getActiveSheet()->getPageSetup()->setPrintArea('A1:E5');

There can also be multiple printing areas in a single worksheet:

$spreadsheet->getActiveSheet()->getPageSetup()->setPrintArea('A1:E5,G4:M20');

Styles

Formatting cells

A cell can be formatted with font, border, fill, ... style information. For example, one can set the foreground colour of a cell to red, aligned to the right, and the border to black and thick border style. Let's do that on cell B2:

$spreadsheet->getActiveSheet()->getStyle('B2')
    ->getFont()->getColor()->setARGB(\PhpOffice\PhpSpreadsheet\Style\Color::COLOR_RED);
$spreadsheet->getActiveSheet()->getStyle('B2')
    ->getAlignment()->setHorizontal(\PhpOffice\PhpSpreadsheet\Style\Alignment::HORIZONTAL_RIGHT);
$spreadsheet->getActiveSheet()->getStyle('B2')
    ->getBorders()->getTop()->setBorderStyle(\PhpOffice\PhpSpreadsheet\Style\Border::BORDER_THICK);
$spreadsheet->getActiveSheet()->getStyle('B2')
    ->getBorders()->getBottom()->setBorderStyle(\PhpOffice\PhpSpreadsheet\Style\Border::BORDER_THICK);
$spreadsheet->getActiveSheet()->getStyle('B2')
    ->getBorders()->getLeft()->setBorderStyle(\PhpOffice\PhpSpreadsheet\Style\Border::BORDER_THICK);
$spreadsheet->getActiveSheet()->getStyle('B2')
    ->getBorders()->getRight()->setBorderStyle(\PhpOffice\PhpSpreadsheet\Style\Border::BORDER_THICK);
$spreadsheet->getActiveSheet()->getStyle('B2')
    ->getFill()->setFillType(\PhpOffice\PhpSpreadsheet\Style\Fill::FILL_SOLID);
$spreadsheet->getActiveSheet()->getStyle('B2')
    ->getFill()->getStartColor()->setARGB('FFFF0000');

getStyle() also accepts a cell range as a parameter. For example, you can set a red background color on a range of cells:

$spreadsheet->getActiveSheet()->getStyle('B3:B7')->getFill()
    ->setFillType(\PhpOffice\PhpSpreadsheet\Style\Fill::FILL_SOLID)
    ->getStartColor()->setARGB('FFFF0000');

Tip It is recommended to style many cells at once, using e.g. getStyle('A1:M500'), rather than styling the cells individually in a loop. This is much faster compared to looping through cells and styling them individually.

There is also an alternative manner to set styles. The following code sets a cell's style to font bold, alignment right, top border thin and a gradient fill:

$styleArray = [
    'font' => [
        'bold' => true,
    ],
    'alignment' => [
        'horizontal' => \PhpOffice\PhpSpreadsheet\Style\Alignment::HORIZONTAL_RIGHT,
    ],
    'borders' => [
        'top' => [
            'borderStyle' => \PhpOffice\PhpSpreadsheet\Style\Border::BORDER_THIN,
        ],
    ],
    'fill' => [
        'fillType' => \PhpOffice\PhpSpreadsheet\Style\Fill::FILL_GRADIENT_LINEAR,
        'rotation' => 90,
        'startColor' => [
            'argb' => 'FFA0A0A0',
        ],
        'endColor' => [
            'argb' => 'FFFFFFFF',
        ],
    ],
];

$spreadsheet->getActiveSheet()->getStyle('A3')->applyFromArray($styleArray);

Or with a range of cells:

$spreadsheet->getActiveSheet()->getStyle('B3:B7')->applyFromArray($styleArray);

This alternative method using arrays should be faster in terms of execution whenever you are setting more than one style property. But the difference may barely be measurable unless you have many different styles in your workbook.

You can perform the opposite function, exporting a Style as an array, as follows:

$styleArray = $spreadsheet->getActiveSheet()->getStyle('A3')->exportArray();

Number formats

You often want to format numbers in Excel. For example you may want a thousands separator plus a fixed number of decimals after the decimal separator. Or perhaps you want some numbers to be zero-padded.

In Microsoft Office Excel you may be familiar with selecting a number format from the "Format Cells" dialog. Here there are some predefined number formats available including some for dates. The dialog is designed in a way so you don't have to interact with the underlying raw number format code unless you need a custom number format.

In PhpSpreadsheet, you can also apply various predefined number formats. Example:

$spreadsheet->getActiveSheet()->getStyle('A1')->getNumberFormat()
    ->setFormatCode(\PhpOffice\PhpSpreadsheet\Style\NumberFormat::FORMAT_NUMBER_COMMA_SEPARATED1);

This will format a number e.g. 1587.2 so it shows up as 1,587.20 when you open the workbook in MS Office Excel. (Depending on settings for decimal and thousands separators in Microsoft Office Excel it may show up as 1.587,20)

You can achieve exactly the same as the above by using this:

$spreadsheet->getActiveSheet()->getStyle('A1')->getNumberFormat()
    ->setFormatCode('#,##0.00');

In Microsoft Office Excel, as well as in PhpSpreadsheet, you will have to interact with raw number format codes whenever you need some special custom number format. Example:

$spreadsheet->getActiveSheet()->getStyle('A1')->getNumberFormat()
    ->setFormatCode('[Blue][>=3000]$#,##0;[Red][<0]$#,##0;$#,##0');

Another example is when you want numbers zero-padded with leading zeros to a fixed length:

$spreadsheet->getActiveSheet()->getCell('A1')->setValue(19);
$spreadsheet->getActiveSheet()->getStyle('A1')->getNumberFormat()
    ->setFormatCode('0000'); // will show as 0019 in Excel

Tip The rules for composing a number format code in Excel can be rather complicated. Sometimes you know how to create some number format in Microsoft Office Excel, but don't know what the underlying number format code looks like. How do you find it?

The readers shipped with PhpSpreadsheet come to the rescue. Load your template workbook using e.g. Xlsx reader to reveal the number format code. Example how read a number format code for cell A1:

$reader = \PhpOffice\PhpSpreadsheet\IOFactory::createReader('Xlsx');
$spreadsheet = $reader->load('template.xlsx');
var_dump($spreadsheet->getActiveSheet()->getStyle('A1')->getNumberFormat()->getFormatCode());

Advanced users may find it faster to inspect the number format code directly by renaming template.xlsx to template.zip, unzipping, and looking for the relevant piece of XML code holding the number format code in xl/styles.xml.

Alignment and wrap text

Let's set vertical alignment to the top for cells A1:D4

$spreadsheet->getActiveSheet()->getStyle('A1:D4')
    ->getAlignment()->setVertical(\PhpOffice\PhpSpreadsheet\Style\Alignment::VERTICAL_TOP);

Here is how to achieve wrap text:

$spreadsheet->getActiveSheet()->getStyle('A1:D4')
    ->getAlignment()->setWrapText(true);

Setting the default style of a workbook

It is possible to set the default style of a workbook. Let's set the default font to Arial size 8:

$spreadsheet->getDefaultStyle()->getFont()->setName('Arial');
$spreadsheet->getDefaultStyle()->getFont()->setSize(8);

Excel also offers "theme fonts", with separate font names for major (header) and minor (body) text. PhpSpreadsheet will use the Excel 2007 default (Cambria) for major (default is Calibri Light in Excel 2013+); PhpSpreadsheet default for minor is Calibri, which is used by Excel 2007+. To align the default font name with the minor font name:

$spreadsheet->getTheme()
    ->setThemeFontName('custom')
    ->setMinorFontValues('Arial', 'Arial', 'Arial', []);
$spreadsheet->getDefaultStyle()->getFont()->setScheme('minor');

All cells bound to the theme fonts (via the Font::setScheme method) can be easily changed to a different font in Excel. To do this in PhpSpreadsheet, an additional method call is needed:

$spreadsheet->resetThemeFonts();

Styling cell borders

In PhpSpreadsheet it is easy to apply various borders on a rectangular selection. Here is how to apply a thick red border outline around cells B2:G8.

$styleArray = [
    'borders' => [
        'outline' => [
            'borderStyle' => \PhpOffice\PhpSpreadsheet\Style\Border::BORDER_THICK,
            'color' => ['argb' => 'FFFF0000'],
        ],
    ],
];

$worksheet->getStyle('B2:G8')->applyFromArray($styleArray);

In Microsoft Office Excel, the above operation would correspond to selecting the cells B2:G8, launching the style dialog, choosing a thick red border, and clicking on the "Outline" border component.

Note that the border outline is applied to the rectangular selection B2:G8 as a whole, not on each cell individually.

You can achieve any border effect by using just the 5 basic borders and operating on a single cell at a time:

• left
• right
• top
• bottom
• diagonal

Additional shortcut borders come in handy like in the example above. These are the shortcut borders available:

• allBorders
• outline
• inside
• vertical
• horizontal

An overview of all border shortcuts can be seen in the following image:

If you simultaneously set e.g. allBorders and vertical, then we have "overlapping" borders, and one of the components has to win over the other where there is border overlap. In PhpSpreadsheet, from weakest to strongest borders, the list is as follows: allBorders, outline/inside, vertical/horizontal, left/right/top/bottom/diagonal.

This border hierarchy can be utilized to achieve various effects in an easy manner.

Advanced borders

There is a second parameter $advancedBorders which can be supplied to applyFromArray. The default is true; when set to this value, the border styles are applied to the range as a whole, not to the individual cells. When set to false, the border styles are applied to each cell. The following code and screenshot demonstrates the difference.

$sheet->setShowGridlines(false);
$styleArray = [
    'borders' => [
        'bottom' => ['borderStyle' => 'hair', 'color' => ['argb' => 'FFFF0000']],
        'top' => ['borderStyle' => 'hair', 'color' => ['argb' => 'FFFF0000']],
        'right' => ['borderStyle' => 'hair', 'color' => ['argb' => 'FF00FF00']],
        'left' => ['borderStyle' => 'hair', 'color' => ['argb' => 'FF00FF00']],
    ],
];
$sheet->getStyle('B2:C3')->applyFromArray($styleArray);
$sheet->getStyle('B5:C6')->applyFromArray($styleArray, false);

Valid array keys for style applyFromArray()

The following table lists the valid array keys for \PhpOffice\PhpSpreadsheet\Style\Style::applyFromArray() classes. If the "Maps to property" column maps a key to a setter, the value provided for that key will be applied directly. If the "Maps to property" column maps a key to a getter, the value provided for that key will be applied as another style array.

\PhpOffice\PhpSpreadsheet\Style\Style

\PhpOffice\PhpSpreadsheet\Style\Alignment

\PhpOffice\PhpSpreadsheet\Style\Border

\PhpOffice\PhpSpreadsheet\Style\Borders

\PhpOffice\PhpSpreadsheet\Style\Color

\PhpOffice\PhpSpreadsheet\Style\Fill

\PhpOffice\PhpSpreadsheet\Style\Font

\PhpOffice\PhpSpreadsheet\Style\NumberFormat

\PhpOffice\PhpSpreadsheet\Style\Protection

Conditional formatting a cell

A cell can be formatted conditionally, based on a specific rule. For example, one can set the foreground colour of a cell to red if its value is below zero, and to green if its value is zero or more.

One can set a conditional style ruleset to a cell using the following code:

$conditional1 = new \PhpOffice\PhpSpreadsheet\Style\Conditional();
$conditional1->setConditionType(\PhpOffice\PhpSpreadsheet\Style\Conditional::CONDITION_CELLIS);
$conditional1->setOperatorType(\PhpOffice\PhpSpreadsheet\Style\Conditional::OPERATOR_LESSTHAN);
$conditional1->addCondition('0');
$conditional1->getStyle()->getFont()->getColor()->setARGB(\PhpOffice\PhpSpreadsheet\Style\Color::COLOR_RED);
$conditional1->getStyle()->getFont()->setBold(true);

$conditional2 = new \PhpOffice\PhpSpreadsheet\Style\Conditional();
$conditional2->setConditionType(\PhpOffice\PhpSpreadsheet\Style\Conditional::CONDITION_CELLIS);
$conditional2->setOperatorType(\PhpOffice\PhpSpreadsheet\Style\Conditional::OPERATOR_GREATERTHANOREQUAL);
$conditional2->addCondition('0');
$conditional2->getStyle()->getFont()->getColor()->setARGB(\PhpOffice\PhpSpreadsheet\Style\Color::COLOR_GREEN);
$conditional2->getStyle()->getFont()->setBold(true);

$conditionalStyles = $spreadsheet->getActiveSheet()->getStyle('B2')->getConditionalStyles();
$conditionalStyles[] = $conditional1;
$conditionalStyles[] = $conditional2;

$spreadsheet->getActiveSheet()->getStyle('B2')->setConditionalStyles($conditionalStyles);

If you want to copy the ruleset to other cells, you can duplicate the style object:

$spreadsheet->getActiveSheet()
    ->duplicateStyle(
        $spreadsheet->getActiveSheet()->getStyle('B2'),
        'B3:B7'
    );

More detailed documentation of the Conditional Formatting options and rules, and the use of Wizards to help create them, can be found in a dedicated section of the documentation.

DataBar of Conditional formatting

The basics are the same as conditional formatting. Additional DataBar object to conditional formatting.

For example, the following code will result in the conditional formatting shown in the image.

$conditional = new Conditional();
$conditional->setConditionType(Conditional::CONDITION_DATABAR);
$conditional->setDataBar(new ConditionalDataBar());
$conditional->getDataBar()
            ->setMinimumConditionalFormatValueObject(new ConditionalFormatValueObject('num', '2'))
            ->setMaximumConditionalFormatValueObject(new ConditionalFormatValueObject('max'))
            ->setColor('FFFF555A');
$ext = $conditional
    ->getDataBar()
    ->setConditionalFormattingRuleExt(new ConditionalFormattingRuleExtension())
    ->getConditionalFormattingRuleExt();

$ext->setCfRule('dataBar');
$ext->setSqref('A1:A5'); // target CellCoordinates
$ext->setDataBarExt(new ConditionalDataBarExtension());
$ext->getDataBarExt()
    ->setMinimumConditionalFormatValueObject(new ConditionalFormatValueObject('num', '2'))
    ->setMaximumConditionalFormatValueObject(new ConditionalFormatValueObject('autoMax'))
    ->setMinLength(0)
    ->setMaxLength(100)
    ->setBorder(true)
    ->setDirection('rightToLeft')
    ->setNegativeBarBorderColorSameAsPositive(false)
    ->setBorderColor('FFFF555A')
    ->setNegativeFillColor('FFFF0000')
    ->setNegativeBorderColor('FFFF0000')
    ->setAxisColor('FF000000');

Add a comment to a cell

To add a comment to a cell, use the following code. The example below adds a comment to cell E11:

$spreadsheet->getActiveSheet()
    ->getComment('E11')
    ->setAuthor('Mark Baker');
$commentRichText = $spreadsheet->getActiveSheet()
    ->getComment('E11')
    ->getText()->createTextRun('PhpSpreadsheet:');
$commentRichText->getFont()->setBold(true);
$spreadsheet->getActiveSheet()
    ->getComment('E11')
    ->getText()->createTextRun("\r\n");
$spreadsheet->getActiveSheet()
    ->getComment('E11')
    ->getText()->createTextRun('Total amount on the current invoice, excluding VAT.');

Add a comment with background image to a cell

To add a comment with background image to a cell, use the following code:

$sheet = $spreadsheet->getActiveSheet();
$sheet->setCellValue('B5', 'Gibli Chromo');
// Add png image to comment background
$drawing = new Drawing();
$drawing->setName('Gibli Chromo');
$drawing->setPath('/tmp/gibli_chromo.png');
$comment = $sheet->getComment('B5');
$comment->setBackgroundImage($drawing);
// Set the size of the comment equal to the size of the image
$comment->setSizeAsBackgroundImage();

Apply autofilter to a range of cells

To apply an autofilter to a range of cells, use the following code:

$spreadsheet->getActiveSheet()->setAutoFilter('A1:C9');

Make sure that you always include the complete filter range! Excel does support setting only the caption row, but that's not a best practice...

Setting security on a spreadsheet

Excel offers 3 levels of "protection":

• Document: allows you to set a password on a complete spreadsheet, allowing changes to be made only when that password is entered.
• Worksheet: offers other security options: you can disallow inserting rows on a specific sheet, disallow sorting, ...
• Cell: offers the option to lock/unlock a cell as well as show/hide the internal formula.

Make sure you enable worksheet protection if you need any of the worksheet or cell protection features! This can be done using the following code:

$spreadsheet->getActiveSheet()->getProtection()->setSheet(true);

Note that "protection" is not the same as "encryption". Protection is about preventing parts of a spreadsheet from being changed, not about preventing the spreadsheet from being looked at.

PhpSpreadsheet does not support encrypting a spreadsheet; nor can it read encrypted spreadsheets.

Document

An example on setting document security:

$security = $spreadsheet->getSecurity();
$security->setLockWindows(true);
$security->setLockStructure(true);
$security->setWorkbookPassword("PhpSpreadsheet");

Note that there are additional methods setLockRevision and setRevisionsPassword which apply only to change tracking and history for shared workbooks.

Worksheet

An example on setting worksheet security (user can sort, insert rows, or format cells without unprotecting):

$protection = $spreadsheet->getActiveSheet()->getProtection();
$protection->setPassword('PhpSpreadsheet');
$protection->setSheet(true);
$protection->setSort(false);
$protection->setInsertRows(false);
$protection->setFormatCells(false);

Note that allowing sort without providing the sheet password (similarly with autoFilter) requires that you explicitly enable the cell ranges for which sort is permitted, with or without a range password:

$sheet->protectCells('A:A'); // column A can be sorted without password
$sheet->protectCells('B:B', 'sortpw'); // column B can be sorted if the range password sortpw is supplied

If writing Xlsx files you can specify the algorithm used to hash the password before calling setPassword() like so:

$protection = $spreadsheet->getActiveSheet()->getProtection();
$protection->setAlgorithm(Protection::ALGORITHM_SHA_512);
$protection->setSpinCount(20000);
$protection->setPassword('PhpSpreadsheet');

The salt should not be set manually and will be automatically generated when setting a new password.

Cell

An example on setting cell security. Note that cell security is honored only when sheet is protected. Also note that the hidden property applies only to formulas, and tells whether the formula is hidden on the formula bar, not in the cell.

$spreadsheet->getActiveSheet()->getStyle('B1')
    ->getProtection()
    ->setLocked(\PhpOffice\PhpSpreadsheet\Style\Protection::PROTECTION_UNPROTECTED)
    ->setHidden(\PhpOffice\PhpSpreadsheet\Style\Protection::PROTECTION_PROTECTED);

Reading protected spreadsheet

Spreadsheets that are protected as described above can always be read by PhpSpreadsheet. There is no need to know the password or do anything special in order to read a protected file.

However if you need to implement a password verification mechanism, you can use the following helper method:

$protection = $spreadsheet->getActiveSheet()->getProtection();
$allowed = $protection->verify('my password');

if ($allowed) {
    doSomething();
} else {
    throw new Exception('Incorrect password');
}

If you need to completely prevent reading a file by any tool, including PhpSpreadsheet, then you are looking for "encryption", not "protection".

Setting data validation on a cell

Data validation is a powerful feature of Xlsx. It allows to specify an input filter on the data that can be inserted in a specific cell. This filter can be a range (i.e. value must be between 0 and 10), a list (i.e. value must be picked from a list), ...

The following piece of code only allows numbers between 10 and 20 to be entered in cell B3:

$validation = $spreadsheet->getActiveSheet()->getCell('B3')
    ->getDataValidation();
$validation->setType( \PhpOffice\PhpSpreadsheet\Cell\DataValidation::TYPE_WHOLE );
$validation->setErrorStyle( \PhpOffice\PhpSpreadsheet\Cell\DataValidation::STYLE_STOP );
$validation->setAllowBlank(true);
$validation->setShowInputMessage(true);
$validation->setShowErrorMessage(true);
$validation->setErrorTitle('Input error');
$validation->setError('Number is not allowed!');
$validation->setPromptTitle('Allowed input');
$validation->setPrompt('Only numbers between 10 and 20 are allowed.');
$validation->setFormula1(10);
$validation->setFormula2(20);

The following piece of code only allows an item picked from a list of data to be entered in cell B5:

$validation = $spreadsheet->getActiveSheet()->getCell('B5')
    ->getDataValidation();
$validation->setType( \PhpOffice\PhpSpreadsheet\Cell\DataValidation::TYPE_LIST );
$validation->setErrorStyle( \PhpOffice\PhpSpreadsheet\Cell\DataValidation::STYLE_INFORMATION );
$validation->setAllowBlank(false);
$validation->setShowInputMessage(true);
$validation->setShowErrorMessage(true);
$validation->setShowDropDown(true);
$validation->setErrorTitle('Input error');
$validation->setError('Value is not in list.');
$validation->setPromptTitle('Pick from list');
$validation->setPrompt('Please pick a value from the drop-down list.');
$validation->setFormula1('"Item A,Item B,Item C"');

When using a data validation list like above, make sure you put the list between " and " and that you split the items with a comma (,).

It is important to remember that any string participating in an Excel formula is allowed to be maximum 255 characters (not bytes). This sets a limit on how many items you can have in the string "Item A,Item B,Item C". Therefore it is normally a better idea to type the item values directly in some cell range, say A1:A3, and instead use, say, $validation->setFormula1('\'Sheet title\'!$A$1:$A$3'). Another benefit is that the item values themselves can contain the comma , character itself.

If you need data validation on multiple cells, one can clone the ruleset:

$spreadsheet->getActiveSheet()->getCell('B8')->setDataValidation(clone $validation);

Alternatively, one can apply the validation to a range of cells:

$validation->setSqref('B5:B1048576');

Setting a column's width

A column's width can be set using the following code:

$spreadsheet->getActiveSheet()->getColumnDimension('D')->setWidth(12);

If you want to set a column width using a different UoM (Unit of Measure), then you can do so by telling PhpSpreadsheet what UoM the width value that you are setting is measured in. Valid units are pt (points), px (pixels), pc (pica), in (inches), cm (centimeters) and mm (millimeters).

Setting the column width to -1 tells MS Excel to display the column using its default width.

$spreadsheet->getActiveSheet()->getColumnDimension('D')->setWidth(120, 'pt');

If you want PhpSpreadsheet to perform an automatic width calculation, use the following code. PhpSpreadsheet will approximate the column width to the width of the widest value displayed in that column.

$spreadsheet->getActiveSheet()->getColumnDimension('B')->setAutoSize(true);

The measure for column width in PhpSpreadsheet does not correspond exactly to the measure you may be used to in Microsoft Office Excel. Column widths are difficult to deal with in Excel, and there are several measures for the column width.

1. Inner width in character units (e.g. 8.43 this is probably what you are familiar with in Excel)
2. Full width in pixels (e.g. 64 pixels)
3. Full width in character units (e.g. 9.140625, value -1 indicates unset width)

PhpSpreadsheet always operates with "3. Full width in character units" which is in fact the only value that is stored in any Excel file, hence the most reliable measure. Unfortunately, Microsoft Office Excel does not present you with this measure. Instead measures 1 and 2 are computed by the application when the file is opened and these values are presented in various dialogues and tool tips.

The character width unit is the width of a 0 (zero) glyph in the workbooks default font. Therefore column widths measured in character units in two different workbooks can only be compared if they have the same default workbook font.If you have some Excel file and need to know the column widths in measure 3, you can read the Excel file with PhpSpreadsheet and echo the retrieved values.

Show/hide a column

To set a worksheet's column visibility, you can use the following code. The first line explicitly shows the column C, the second line hides column D.

$spreadsheet->getActiveSheet()->getColumnDimension('C')->setVisible(true);
$spreadsheet->getActiveSheet()->getColumnDimension('D')->setVisible(false);

Group/outline a column

To group/outline a column, you can use the following code:

$spreadsheet->getActiveSheet()->getColumnDimension('E')->setOutlineLevel(1);

You can also collapse the column. Note that you should also set the column invisible, otherwise the collapse will not be visible in Excel 2007.

$spreadsheet->getActiveSheet()->getColumnDimension('E')->setCollapsed(true);
$spreadsheet->getActiveSheet()->getColumnDimension('E')->setVisible(false);

Please refer to the section "group/outline a row" for a complete example on collapsing.

You can instruct PhpSpreadsheet to add a summary to the right (default), or to the left. The following code adds the summary to the left:

$spreadsheet->getActiveSheet()->setShowSummaryRight(false);

Setting a row's height

A row's height can be set using the following code:

$spreadsheet->getActiveSheet()->getRowDimension('10')->setRowHeight(100);

Excel measures row height in points, where 1 pt is 1/72 of an inch (or about 0.35mm). The default value is 12.75 pts; and the permitted range of values is between 0 and 409 pts, where 0 pts is a hidden row.

If you want to set a row height using a different UoM (Unit of Measure), then you can do so by telling PhpSpreadsheet what UoM the height value that you are setting is measured in. Valid units are pt (points), px (pixels), pc (pica), in (inches), cm (centimeters) and mm (millimeters).

$spreadsheet->getActiveSheet()->getRowDimension('10')->setRowHeight(100, 'pt');

Setting the row height to -1 tells MS Excel to display the column using its default height, which is based on the character font size.

If you have wrapped text in a cell, then the -1 default will only set the row height to display a single line of that wrapped text. If you need to calculate the actual height for the row, then count the lines that should be displayed (count the \n and add 1); then adjust for the font. The adjustment for Calibri 11 is approximately 14.5; for Calibri 12 15.9, etc.

$spreadsheet->getActiveSheet()->getRowDimension(1)->setRowHeight(
    14.5 * (substr_count($sheet->getCell('A1')->getValue(), "\n") + 1)
);

Show/hide a row

To set a worksheet''s row visibility, you can use the following code. The following example hides row number 10.

$spreadsheet->getActiveSheet()->getRowDimension('10')->setVisible(false);

Note that if you apply active filters using an AutoFilter, then this will override any rows that you hide or unhide manually within that AutoFilter range if you save the file.

Group/outline a row

To group/outline a row, you can use the following code:

$spreadsheet->getActiveSheet()->getRowDimension('5')->setOutlineLevel(1);

You can also collapse the row. Note that you should also set the row invisible, otherwise the collapse will not be visible in Excel 2007.

$spreadsheet->getActiveSheet()->getRowDimension('5')->setCollapsed(true);
$spreadsheet->getActiveSheet()->getRowDimension('5')->setVisible(false);

Here's an example which collapses rows 50 to 80:

for ($i = 51; $i <= 80; $i++) {
    $spreadsheet->getActiveSheet()->setCellValue('A' . $i, "FName $i");
    $spreadsheet->getActiveSheet()->setCellValue('B' . $i, "LName $i");
    $spreadsheet->getActiveSheet()->setCellValue('C' . $i, "PhoneNo $i");
    $spreadsheet->getActiveSheet()->setCellValue('D' . $i, "FaxNo $i");
    $spreadsheet->getActiveSheet()->setCellValue('E' . $i, true);
    $spreadsheet->getActiveSheet()->getRowDimension($i)->setOutlineLevel(1);
    $spreadsheet->getActiveSheet()->getRowDimension($i)->setVisible(false);
}

$spreadsheet->getActiveSheet()->getRowDimension(81)->setCollapsed(true);

You can instruct PhpSpreadsheet to add a summary below the collapsible rows (default), or above. The following code adds the summary above:

$spreadsheet->getActiveSheet()->setShowSummaryBelow(false);

Merge/Unmerge cells

If you have a big piece of data you want to display in a worksheet, or a heading that needs to span multiple sub-heading columns, you can merge two or more cells together, to become one cell. This can be done using the following code:

$spreadsheet->getActiveSheet()->mergeCells('A18:E22');

Removing a merge can be done using the unmergeCells() method:

$spreadsheet->getActiveSheet()->unmergeCells('A18:E22');

MS Excel itself doesn't yet offer the functionality to simply hide the merged cells, or to merge the content of cells into a single cell, but it is available in Open/Libre Office.

Merge with MERGE_CELL_CONTENT_EMPTY

The default behaviour is to empty all cells except for the top-left corner cell in the merge range; and this is also the default behaviour for the mergeCells() method in PhpSpreadsheet. When this behaviour is applied, those cell values will be set to null; and if they are subsequently Unmerged, they will be empty cells.

Passing an extra flag value to the mergeCells() method in PhpSpreadsheet can change this behaviour.

Possible flag values are: - Worksheet::MERGE_CELL_CONTENT_EMPTY (the default) - Worksheet::MERGE_CELL_CONTENT_HIDE - Worksheet::MERGE_CELL_CONTENT_MERGE

Merge with MERGE_CELL_CONTENT_HIDE

The first alternative, available only in OpenOffice, is to hide those cells, but to leave their content intact. When a file saved as Xlsx in those applications is opened in MS Excel, and those cells are unmerged, the original content will still be present.

$spreadsheet->getActiveSheet()->mergeCells('A1:C3', Worksheet::MERGE_CELL_CONTENT_HIDE);

Will replicate that behaviour.

Merge with MERGE_CELL_CONTENT_MERGE

The second alternative, available in both OpenOffice and LibreOffice is to merge the content of every cell in the merge range into the top-left cell, while setting those hidden cells to empty.

$spreadsheet->getActiveSheet()->mergeCells('A1:C3', Worksheet::MERGE_CELL_CONTENT_MERGE);

Particularly when the merged cells contain formulae, the logic for this merge seems strange: walking through the merge range, each cell is calculated in turn, and appended to the "master" cell, then it is emptied, so any subsequent calculations that reference the cell see an empty cell, not the pre-merge value. For example, suppose our spreadsheet contains

where B2 is the formula =5-B1 and C2 is the formula =A2/B2, and we want to merge cells A2 to C2 with all the cell values merged. The result is:

The cell value 12 from cell A2 is fixed; the value from B2 is the result of the formula =5-B1 (4, which is appended to our merged value), and cell B2 is then emptied, so when we evaluate cell C2 with the formula =A2/B2 it gives us 12 / 0 which results in a #DIV/0! error (so the error #DIV/0! is appended to our merged value rather than the original calculation result of 3).

Inserting or Removing rows/columns

You can insert/remove rows/columns at a specific position. The following code inserts 2 new rows, right before row 7:

$spreadsheet->getActiveSheet()->insertNewRowBefore(7, 2);

while

$spreadsheet->getActiveSheet()->removeRow(7, 2);

will remove 2 rows starting at row number 7 (ie. rows 7 and 8).

Equivalent methods exist for inserting/removing columns:

$spreadsheet->getActiveSheet()->removeColumn('C', 2);

All subsequent rows (or columns) will be moved to allow the insertion (or removal) with all formulae referencing thise cells adjusted accordingly.

Note that this is a fairly intensive process, particularly with large worksheets, and especially if you are inserting/removing rows/columns from near beginning of the worksheet.

If you need to insert/remove several consecutive rows/columns, always use the second argument rather than making multiple calls to insert/remove a single row/column if possible.

Add a drawing to a worksheet

A drawing is always represented as a separate object, which can be added to a worksheet. Therefore, you must first instantiate a new \PhpOffice\PhpSpreadsheet\Worksheet\Drawing, and assign its properties a meaningful value:

$drawing = new \PhpOffice\PhpSpreadsheet\Worksheet\Drawing();
$drawing->setName('Logo');
$drawing->setDescription('Logo');
$drawing->setPath('./images/officelogo.jpg');
$drawing->setHeight(36);

To add the above drawing to the worksheet, use the following snippet of code. PhpSpreadsheet creates the link between the drawing and the worksheet:

$drawing->setWorksheet($spreadsheet->getActiveSheet());

You can set numerous properties on a drawing, here are some examples:

$drawing->setName('Paid');
$drawing->setDescription('Paid');
$drawing->setPath('./images/paid.png');
$drawing->setCoordinates('B15');
$drawing->setOffsetX(110);
$drawing->setRotation(25);
$drawing->getShadow()->setVisible(true);
$drawing->getShadow()->setDirection(45);

You can also add images created using GD functions without needing to save them to disk first as In-Memory drawings.

//  Use GD to create an in-memory image
$gdImage = @imagecreatetruecolor(120, 20) or die('Cannot Initialize new GD image stream');
$textColor = imagecolorallocate($gdImage, 255, 255, 255);
imagestring($gdImage, 1, 5, 5,  'Created with PhpSpreadsheet', $textColor);

//  Add the In-Memory image to a worksheet
$drawing = new \PhpOffice\PhpSpreadsheet\Worksheet\MemoryDrawing();
$drawing->setName('In-Memory image 1');
$drawing->setDescription('In-Memory image 1');
$drawing->setCoordinates('A1');
$drawing->setImageResource($gdImage);
$drawing->setRenderingFunction(
    \PhpOffice\PhpSpreadsheet\Worksheet\MemoryDrawing::RENDERING_JPEG
);
$drawing->setMimeType(\PhpOffice\PhpSpreadsheet\Worksheet\MemoryDrawing::MIMETYPE_DEFAULT);
$drawing->setHeight(36);
$drawing->setWorksheet($spreadsheet->getActiveSheet());

Note that GD images are memory-intensive.

Creating a Drawing from string or stream data

If you want to create a drawing from a string containing the binary image data, or from an external datasource such as an S3 bucket, then you can create a new MemoryDrawing from these sources using the fromString() or fromStream() static methods.

$drawing = MemoryDrawing::fromString($imageString);

$drawing = MemoryDrawing::fromStream($imageStreamFromS3Bucket);

Note that this is a memory-intensive process, like all gd images; and also creates a temporary file.

Reading Images from a worksheet

A commonly asked question is how to retrieve the images from a workbook that has been loaded, and save them as individual image files to disk.

The following code extracts images from the current active worksheet, and writes each as a separate file.

use PhpOffice\PhpSpreadsheet\Worksheet\MemoryDrawing;
$i = 0;

foreach ($spreadsheet->getActiveSheet()->getDrawingCollection() as $drawing) {
    if ($drawing instanceof MemoryDrawing) {
        ob_start();
        call_user_func(
            $drawing->getRenderingFunction(),
            $drawing->getImageResource()
        );
        $imageContents = ob_get_contents();
        ob_end_clean();
        switch ($drawing->getMimeType()) {
            case MemoryDrawing::MIMETYPE_PNG :
                $extension = 'png';
                break;
            case MemoryDrawing::MIMETYPE_GIF:
                $extension = 'gif';
                break;
            case MemoryDrawing::MIMETYPE_JPEG :
                $extension = 'jpg';
                break;
        }
    } else {
        if ($drawing->getPath()) {
            // Check if the source is a URL or a file path
            if ($drawing->getIsURL()) {
                $imageContents = file_get_contents($drawing->getPath());
                $filePath = tempnam(sys_get_temp_dir(), 'Drawing');
                file_put_contents($filePath , $imageContents);
                $mimeType = mime_content_type($filePath);
                // You could use the below to find the extension from mime type.
                // https://gist.github.com/alexcorvi/df8faecb59e86bee93411f6a7967df2c#gistcomment-2722664
                $extension = File::mime2ext($mimeType);
                unlink($filePath);
            }
            else {
                $zipReader = fopen($drawing->getPath(),'r');
                $imageContents = '';
                while (!feof($zipReader)) {
                    $imageContents .= fread($zipReader,1024);
                }
                fclose($zipReader);
                $extension = $drawing->getExtension();
            }
        }
    }
    $myFileName = '00_Image_'.++$i.'.'.$extension;
    file_put_contents($myFileName,$imageContents);
}

Add rich text to a cell

Adding rich text to a cell can be done using \PhpOffice\PhpSpreadsheet\RichText\RichText instances. Here''s an example, which creates the following rich text string:

This invoice is payable within thirty days after the end of the month unless specified otherwise on the invoice.

$richText = new \PhpOffice\PhpSpreadsheet\RichText\RichText();
$richText->createText('This invoice is ');
$payable = $richText->createTextRun('payable within thirty days after the end of the month');
$payable->getFont()->setBold(true);
$payable->getFont()->setItalic(true);
$payable->getFont()->setColor( new \PhpOffice\PhpSpreadsheet\Style\Color( \PhpOffice\PhpSpreadsheet\Style\Color::COLOR_DARKGREEN ) );
$richText->createText(', unless specified otherwise on the invoice.');
$spreadsheet->getActiveSheet()->getCell('A18')->setValue($richText);

Define a named range

PhpSpreadsheet supports the definition of named ranges. These can be defined using the following code:

// Add some data
$spreadsheet->setActiveSheetIndex(0);
$spreadsheet->getActiveSheet()->setCellValue('A1', 'Firstname:');
$spreadsheet->getActiveSheet()->setCellValue('A2', 'Lastname:');
$spreadsheet->getActiveSheet()->setCellValue('B1', 'Maarten');
$spreadsheet->getActiveSheet()->setCellValue('B2', 'Balliauw');

// Define named ranges
$spreadsheet->addNamedRange( new \PhpOffice\PhpSpreadsheet\NamedRange('PersonFN', $spreadsheet->getActiveSheet(), '$B$1'));
$spreadsheet->addNamedRange( new \PhpOffice\PhpSpreadsheet\NamedRange('PersonLN', $spreadsheet->getActiveSheet(), '$B$2'));

Optionally, a fourth parameter can be passed defining the named range local (i.e. only usable on the current worksheet). Named ranges are global by default.

Define a named formula

In addition to named ranges, PhpSpreadsheet also supports the definition of named formulae. These can be defined using the following code:

// Add some data
$spreadsheet->setActiveSheetIndex(0);
$worksheet = $spreadsheet->getActiveSheet();
$worksheet
    ->setCellValue('A1', 'Product')
    ->setCellValue('B1', 'Quantity')
    ->setCellValue('C1', 'Unit Price')
    ->setCellValue('D1', 'Price')
    ->setCellValue('E1', 'VAT')
    ->setCellValue('F1', 'Total');

// Define named formula
$spreadsheet->addNamedFormula( new \PhpOffice\PhpSpreadsheet\NamedFormula('GERMAN_VAT_RATE', $worksheet, '=16.0%'));
$spreadsheet->addNamedFormula( new \PhpOffice\PhpSpreadsheet\NamedFormula('CALCULATED_PRICE', $worksheet, '=$B1*$C1'));
$spreadsheet->addNamedFormula( new \PhpOffice\PhpSpreadsheet\NamedFormula('GERMAN_VAT', $worksheet, '=$D1*GERMAN_VAT_RATE'));
$spreadsheet->addNamedFormula( new \PhpOffice\PhpSpreadsheet\NamedFormula('TOTAL_INCLUDING_VAT', $worksheet, '=$D1+$E1'));

$worksheet
    ->setCellValue('A2', 'Advanced Web Application Architecture')
    ->setCellValue('B2', 2)
    ->setCellValue('C2', 23.0)
    ->setCellValue('D2', '=CALCULATED_PRICE')
    ->setCellValue('E2', '=GERMAN_VAT')
    ->setCellValue('F2', '=TOTAL_INCLUDING_VAT');
$spreadsheet->getActiveSheet()
    ->setCellValue('A3', 'Object Design Style Guide')
    ->setCellValue('B3', 5)
    ->setCellValue('C3', 12.0)
    ->setCellValue('D3', '=CALCULATED_PRICE')
    ->setCellValue('E3', '=GERMAN_VAT')
    ->setCellValue('F3', '=TOTAL_INCLUDING_VAT');
$spreadsheet->getActiveSheet()
    ->setCellValue('A4', 'PHP For the Web')
    ->setCellValue('B4', 3)
    ->setCellValue('C4', 10.0)
    ->setCellValue('D4', '=CALCULATED_PRICE')
    ->setCellValue('E4', '=GERMAN_VAT')
    ->setCellValue('F4', '=TOTAL_INCLUDING_VAT');

// Use a relative named range to provide the totals for rows 2-4
$spreadsheet->addNamedRange( new \PhpOffice\PhpSpreadsheet\NamedRange('COLUMN_TOTAL', $worksheet, '=A$2:A$4') );

$spreadsheet->getActiveSheet()
    ->setCellValue('B6', '=SUBTOTAL(109,COLUMN_TOTAL)')
    ->setCellValue('D6', '=SUBTOTAL(109,COLUMN_TOTAL)')
    ->setCellValue('E6', '=SUBTOTAL(109,COLUMN_TOTAL)')
    ->setCellValue('F6', '=SUBTOTAL(109,COLUMN_TOTAL)');

As with named ranges, an optional fourth parameter can be passed defining the named formula scope as local (i.e. only usable on the specified worksheet). Otherwise, named formulae are global by default.

Redirect output to a client's web browser

Sometimes, one really wants to output a file to a client''s browser, especially when creating spreadsheets on-the-fly. There are some easy steps that can be followed to do this:

1. Create your PhpSpreadsheet spreadsheet
2. Output HTTP headers for the type of document you wish to output
3. Use the \PhpOffice\PhpSpreadsheet\Writer\* of your choice, and save to 'php://output'

\PhpOffice\PhpSpreadsheet\Writer\Xlsx uses temporary storage when writing to php://output. By default, temporary files are stored in the script's working directory. When there is no access, it falls back to the operating system's temporary files location.

This may not be safe for unauthorized viewing! Depending on the configuration of your operating system, temporary storage can be read by anyone using the same temporary storage folder. When confidentiality of your document is needed, it is recommended not to use php://output.

HTTP headers

Example of a script redirecting an Excel 2007 file to the client's browser:

/* Here there will be some code where you create $spreadsheet */

// redirect output to client browser
header('Content-Type: application/vnd.openxmlformats-officedocument.spreadsheetml.sheet');
header('Content-Disposition: attachment;filename="myfile.xlsx"');
header('Cache-Control: max-age=0');

$writer = \PhpOffice\PhpSpreadsheet\IOFactory::createWriter($spreadsheet, 'Xlsx');
$writer->save('php://output');

Example of a script redirecting an Xls file to the client's browser:

/* Here there will be some code where you create $spreadsheet */

// redirect output to client browser
header('Content-Type: application/vnd.ms-excel');
header('Content-Disposition: attachment;filename="myfile.xls"');
header('Cache-Control: max-age=0');

$writer = \PhpOffice\PhpSpreadsheet\IOFactory::createWriter($spreadsheet, 'Xls');
$writer->save('php://output');

Caution:

Make sure not to include any echo statements or output any other contents than the Excel file. There should be no whitespace before the opening <?php tag and at most one line break after the closing ?> tag (which can also be omitted to avoid problems). Make sure that your script is saved without a BOM (Byte-order mark) because this counts as echoing output. The same things apply to all included files. Failing to follow the above guidelines may result in corrupt Excel files arriving at the client browser, and/or that headers cannot be set by PHP (resulting in warning messages).

Setting the default column width

Default column width can be set using the following code:

$spreadsheet->getActiveSheet()->getDefaultColumnDimension()->setWidth(12);

Excel measures column width in its own proprietary units, based on the number of characters that will be displayed in the default font.

If you want to set the default column width using a different UoM (Unit of Measure), then you can do so by telling PhpSpreadsheet what UoM the width value that you are setting is measured in. Valid units are pt (points), px (pixels), pc (pica), in (inches), cm (centimeters) and mm (millimeters).

$spreadsheet->getActiveSheet()->getDefaultColumnDimension()->setWidth(400, 'pt');

and PhpSpreadsheet will handle the internal conversion.

Setting the default row height

Default row height can be set using the following code:

$spreadsheet->getActiveSheet()->getDefaultRowDimension()->setRowHeight(15);

Excel measures row height in points, where 1 pt is 1/72 of an inch (or about 0.35mm). The default value is 12.75 pts; and the permitted range of values is between 0 and 409 pts, where 0 pts is a hidden row.

If you want to set a row height using a different UoM (Unit of Measure), then you can do so by telling PhpSpreadsheet what UoM the height value that you are setting is measured in. Valid units are pt (points), px (pixels), pc (pica), in (inches), cm (centimeters) and mm (millimeters).

$spreadsheet->getActiveSheet()->getDefaultRowDimension()->setRowHeight(100, 'pt');

Add a GD drawing to a worksheet

There might be a situation where you want to generate an in-memory image using GD and add it to a Spreadsheet without first having to save this file to a temporary location.

Here''s an example which generates an image in memory and adds it to the active worksheet:

// Generate an image
$gdImage = @imagecreatetruecolor(120, 20) or die('Cannot Initialize new GD image stream');
$textColor = imagecolorallocate($gdImage, 255, 255, 255);
imagestring($gdImage, 1, 5, 5,  'Created with PhpSpreadsheet', $textColor);

// Add a drawing to the worksheet
$drawing = new \PhpOffice\PhpSpreadsheet\Worksheet\MemoryDrawing();
$drawing->setName('Sample image');
$drawing->setDescription('Sample image');
$drawing->setImageResource($gdImage);
$drawing->setRenderingFunction(\PhpOffice\PhpSpreadsheet\Worksheet\MemoryDrawing::RENDERING_JPEG);
$drawing->setMimeType(\PhpOffice\PhpSpreadsheet\Worksheet\MemoryDrawing::MIMETYPE_DEFAULT);
$drawing->setHeight(36);
$drawing->setWorksheet($spreadsheet->getActiveSheet());

Setting worksheet zoom level

To set a worksheet's zoom level, the following code can be used:

$spreadsheet->getActiveSheet()->getSheetView()->setZoomScale(75);

Note that zoom level should be in range 10 - 400.

Sheet tab color

Sometimes you want to set a color for sheet tab. For example you can have a red sheet tab:

$worksheet->getTabColor()->setRGB('FF0000');

Creating worksheets in a workbook

If you need to create more worksheets in the workbook, here is how:

$worksheet1 = $spreadsheet->createSheet();
$worksheet1->setTitle('Another sheet');

Think of createSheet() as the "Insert sheet" button in Excel. When you hit that button a new sheet is appended to the existing collection of worksheets in the workbook.

Hidden worksheets (Sheet states)

Set a worksheet to be hidden using this code:

$spreadsheet->getActiveSheet()
    ->setSheetState(\PhpOffice\PhpSpreadsheet\Worksheet\Worksheet::SHEETSTATE_HIDDEN);

Sometimes you may even want the worksheet to be "very hidden". The available sheet states are :

• \PhpOffice\PhpSpreadsheet\Worksheet\Worksheet::SHEETSTATE_VISIBLE
• \PhpOffice\PhpSpreadsheet\Worksheet\Worksheet::SHEETSTATE_HIDDEN
• \PhpOffice\PhpSpreadsheet\Worksheet\Worksheet::SHEETSTATE_VERYHIDDEN

In Excel the sheet state "very hidden" can only be set programmatically, e.g. with Visual Basic Macro. It is not possible to make such a sheet visible via the user interface.

Right-to-left worksheet

Worksheets can be set individually whether column A should start at left or right side. Default is left. Here is how to set columns from right-to-left.

// right-to-left worksheet
$spreadsheet->getActiveSheet()->setRightToLeft(true);
